Video Surveillance Appliances – exacqVision EL-S & EL-SR
Compact, Reliable, Energy-Efficient Hybrid NVR Appliances
Product Description
exacqVision EL-S and EL-SR are low cost, highly energy efficient, hybrid network video surveillance appliances that provides a new level of reliability, performance and energy efficiency.
High reliability is achieved through the use of Linux OS on a solid-state drive, ensuring the unit is always accessible. Top performance with H.264 compression and full D1 resolution on all analog cameras. Extremely low power consumption for energy efficiency and cool operation.
8 or 16 analog camera inputs and up to 24 IP camera inputs., plus alarm inputs and outputs, relay output, RS232-485 PTZ port, and hardware watchdog function.
All EL-S & EL-SR systems come with a full 3 years hardware warranty and 3 years of exacqVision software Updates.
ExaqVision Video Surveillance ServersFeatures
- High Reliability – Fully functional Linux OS on a solid-state drive ensures unit keeps functioning and alerts you of hard drive failures.
- Easy-to-Use Network Appliance – Just plug into your network and go. View, search and administer from any computer running the free exacqVision client, available in Windows, Linux and Mac versions.
- 8 & 16-input Versions – Available as 8-inputs with loop-thru, or 16-inputs no loop-thru.
- High Frame Rate @ D1/4CIF – 480ips NTSC/400ips PAL D1 resolution across all analog cameras on the EL-S/SR 16, and 240/200ips D1 resolution across all analog cameras on the EL-S/SR 8. CIF and 2CIF resolutions also available.
- Efficient File Size – Uses leading-edge H.264 video compression on all analog channels.
- True Hybrid – Any combination of analog and IP cameras from all of the leading IP camera vendors. Standard resolution or megapixel, even the latest H.264 compression IP cameras. Use existing analog cameras today, add up to 24 IP cameras.
- Compact Chassis – 1.5U Rackmount professional chassis can be used in tight spaces, under the counter, equipment cabinets, or in professional IT racks. Stack units for high-density camera counts.
- Built-in DVD/CD-RW drive – easily export video clips to a CD/DVD-RW drive, USB flash drives, or other media.
High Energy Efficiency – Reduced energy footprint and lower lifetime operating cost through energy efficient design. Thermally-optimized chassis ensures cool operation and high reliability.- Low Cost – some of the least expensive, true hybrid systems to purchase and operate on the market today.
High Performance – Optimized application for the latest Intel® Atom™ and Intel® Core™ i3 microprocessors, providing high performance with low power consumption and heat generation.- Intuitive exacqVision Software – All of the features of exacqVision are available on all EL-Series products. Use as an inexpensive network appliance for stand-alone systems, or as a part of large enterprise systems. EL-Series Hybrid Appliances are available with either exacqVision Pro or exacqVision Start VMS.
- Cross-Platform Client – View, search and administer with the exacqVision client software on Windows, Linux and Macintosh computers. The i3 Performance Option enables running the client directly on the appliance.
- Mobile Access
- Access video with web browsers and mobile devices with internet access.
- exacq Mobile Apple® iPhone® & iPad™ app available
- exacq Mobile Android app available
Recording Resolution – Analog:
CIF: 352×240 NTSC / 352×288 PAL
2CIF: 720×240 NTSC / 720×288 PAL
4CIF (D1): 720×480 NTSC / 720×576 PAL
Recording Resolution – IP:
Frame Rate – Analog:
Up to 10 Megapixel; IP camera dependent
EL-S 8 & EL-SR 8:240/200 IPS D1/2CIF/CIF (30/25 IPS/camera) EL-S 16 & EL-SR 16:
480/400 IPS D1/2CIF/CIF (30/25 IPS/camera)
Frame Rate – IP:
Compression – Analog:
Compression – IP
Alarm Inputs:
Alarm Outputs:
Video Inputs – Analog:
Video Inputs – IP:
Video Outputs – Analog:
Audio Inputs:
Serial Connections:
USB2 Ports:
Hard Drive Storage:
IP camera dependent
H.264 or MJPEG hardware compression
H.264, MPEG-4, MJPEG; IP camera dependent
4 TTL inputs
2 TTL outputs and 1 relay output
EL-S 8 & EL-SR 8:8 BNC inputs plus 8 BNC loop-thru EL-S 16 & EL-SR 16:16 BNC inputs
Up to 24 IP camera inputs (optional)
4 + IP camera audio
RS-485 PTZ port, RS-232 port
NIC:1Gbit 1000Base T RJ-45
4 (2 front, 2 rear)
EL-S– Enterprise class, 250, 500, 1000, 2000 GB
EL-SR- Enterprise class, 500, 1000, 2000, 4000 GB
Dual front-accessible drive bays for user-configurable storage and expandability
Sustained Hard Drive Throughput:
VGA Output:
Keyboard & Mouse:
DVD/CD RW:
18 MB/sec
1 VGA (standard) or 2 HDMI or DVI-D (optional, HDMI includes one DVI adapter)
Included
EL-S: Included (front panel access)
EL-SR: Optional
Watchdog Timer:
Operating System:
exacqVision Server support:
Included
Ubuntu Linux embedded on 4GB solid state drive
exacqVision Pro + Enterprise
exacqVision Pro
exacqVision Start
Compatible Client Operating Systems:
Windows 7, Windows Vista, Windows XP, Windows Server 2003/2008
32-bit 0r 64-bit Windows OS
Linux (Ubuntu)
Mac OS X
Web Browser Support:
exacqVision Web Service compatible, allows multi-camera view and playback via browser and mobile appsMobile Support:View and playback from any mobile device browser
exacq Mobile Apple iPhone & iPad app available
exacq Mobile Android app available
Regulatory:
Warranty:
Dimensions (LxWxH):
3 years, parts & labor
EL-S
17.00 x 15.00 x 2.50 in
43.20 x 38.10 x 6.40 cm
EL-SR
17.00 x 16.50 x 2.50 in
43.20 x 42.00 x 6.40 cm
Weight:
EL-S
11.45lbs
5.20 kg
EL-SR
12.50 – 14.50 lbs
5.00 – 6.60 kg
Operating Temperature:
Relative Humidity:
Input voltage:
Power consumption:
Power cables:
40° -95°F (4.5° – 35°C)
5 – 95% RH (non-condensing)
120/240 VAC auto-sensing
35W maximum
North American power cable standard, UK & EU power cables optionally available

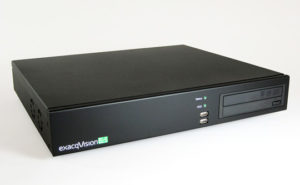

exacqVision EL-S – Front:

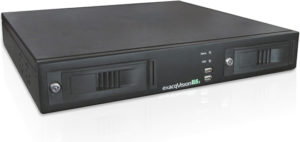

NEW – exacqVision EL-SR – dual removable drive bays

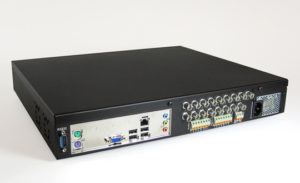

exacqVision EL-S / EL-SR – Rear:

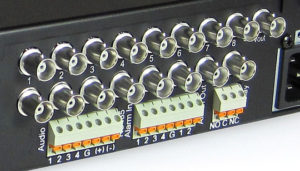

exacqVision EL-S / EL-SR – Rear connectors close-up:
Models – exacqVision EL-S Model Numbers:
exacqVision EL-S 8
0800-24-0250 FREE-ELS
0800-24-0500-ELS
0800-24-1000-ELS
0800-24-2000-ELS
Hard Disk Drive Storage Capacity:
250GB
500GB
1000GB
2000GB
exacqVision EL-S 16
1600-24-0250-ELS
1600-24-0500-ELS
1600-24-1000-ELS
1600-24-2000-ELS
250GB
500GB
1000GB
2000GB
exacqVision EL-SR Model Numbers:
exacqVision EL-SR 8
0800-24-0500 FREE-ELSR
0800-24-1000 FREE-ELSR
0800-24-2000 FREE-ELSR
0800-24-4000 FREE-ELSR
Hard Disk Drive Storage Capacity:
500GB
1000GB
2000GB
4000GB
exacqVision EL-SR 16
1600-24-0500-ELSR
1600-24-1000-ELSR
1600-24-2000-ELSR
1600-24-4000-ELSR
Hard Disk Drive Storage Capacity:
500GB
1000GB
2000GB
4000GB
Options & Software:
Options for EL-S & EL-SR
START-01
EVIP-01
EVES-01
EHM-01
5000-64100
5000-64160
UK Power Cord for EL-S/EL-SR
EU Power Cord for EL-S/EL-SR
exacqVision Start IP camera license
exacqVision Pro IP camera license
exacqVision Enterprise Server Management Option
Enterprise Health Monitor for exacqVision
Rack-mount kit for exacqVision EL/EL-S/EL-SR (adapters, handles)
DVD-RW Drive for EL-SR UK Power Cord for EL-S/EL-SR
-UK suffix added to part number
-EU suffix added to part number
